特性
●选用光纤型，大幅提升了传输距离
●对应工业用机器视觉系统的图像处理标准USB3.1
●运动部用产品，最小弯曲半径为50mm(R=50)，拥有可反复1亿次以上的滑动耐久性(光纤时）
●对应工业用机器视觉系统的图像处理标准USB3.1
●运动部用产品，最小弯曲半径为50mm(R=50)，拥有可反复1亿次以上的滑动耐久性(光纤时）
应用
●应用于运动部的贴片机与电路板的外观检查设备
FEP Coaxial Cable for Moving Parts
- 50Ω and 75Ω Coaxial Cables for Use in Moving Parts. It Combines the Excellent Electrical Properties of Fluoropolymers with High Mechanical Life Characteristics.
Cable Assembly for USB 3.0 with High Durability Moving Parts
- Cable assembly for USB3.0 that supports moving parts. It maintains high signal transmission characteristics even when used in harsh environments such as sliding motions exceeding 50 million times, and is expected to be effective in reducing maintenance frequency.
- This cable assembly differs from the requirements of the USB 3.0 standard in part, and achieves ultra-high durability with Junkosha's unique specifications.
| Catalog Number | Outer Diameter [mm] | Connector 1 | Connector 2 |
| JU30-AA-□□□ | 6.7 | USB 3.0 Type A | USB 3.0 Type A |
| JU30-AB-□□□ | 6.7 | USB 3.0 Type A | USB 3.0 Type B |
| JU30-AMB-□□□ | 6.7 | USB 3.0 Type A | Micro USB 3.0 Micro - B |
| JU30-ALB-□□□ | 6.7 | USB 3.0 Type A | USB 3.0 Type B Right Angle |
| JU30-BB-□□□ | 6.7 | USB 3.0 Type B | USB 3.0 Type B |
| JU30-BMB-□□□ | 6.7 | USB 3.0 Type B | Micro USB 3.0 Micro - B |
| JU30-BLB-□□□ | 6.7 | USB 3.1 Type B | USB 3.0 Type B Right Angle |
□□□：Assembly Length（Example：50cm→005、1m→010）

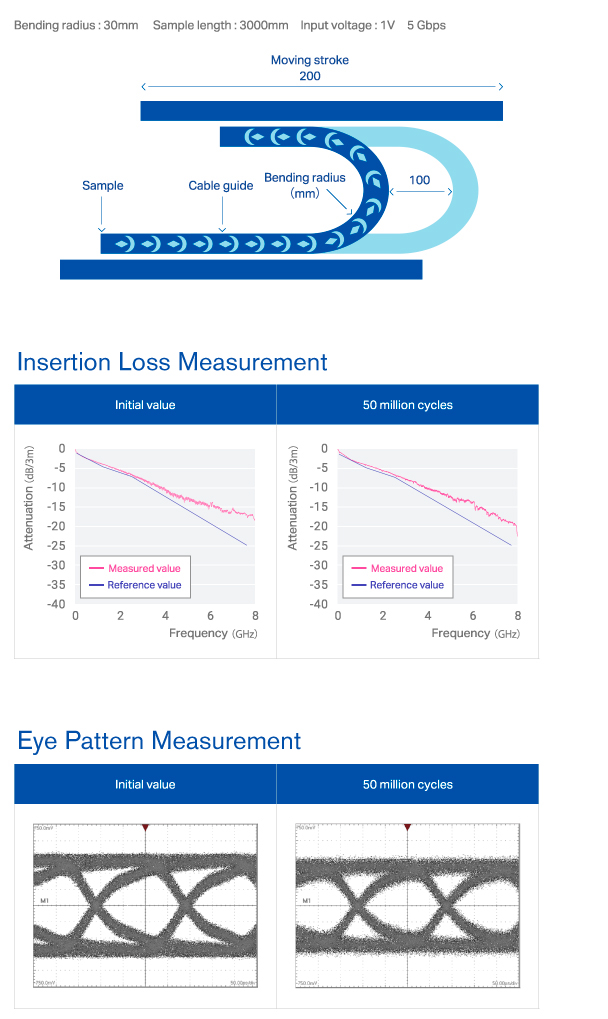

USB 3.0 Cable Assembly Rolling Flex Test
Cable Assemblies for Camera Link Standard for High Durability Moving Parts
- The MDR connector or HDR connector is assembled to each of two types of cables, the CL type that conforms to the Camera Link Interface Standard and the power supply type Camera Link PoCL type (Power over Camera Link).
| Cable Type | Catalog Number | Number of Cores | Outer Diameter [mm] | Camera Side Connector | Board Side Connector |
| CL | JCL22-SS-□□ | 22 | 8 | Standard | Standard |
| JCL22-MS-□□ | 22 | 8 | Mini | Standard | |
| JCL22-MM-□□ | 22 | 8 | Mini | Mini | |
| PoCL | JCL24-SS-□□ | 24 | 9 | Standard | Standard |
| JCL24-MS-□□ | 24 | 9 | Mini | Standard | |
| JCL24-MM-□□ | 24 | 9 | Mini | Mini |
□□□：Assembly Length（Example：50cm→005、1m→010、2m→020、3m→030、～8m→080）
Analog Camera Cable for Moving Parts
- This is a cable for moving part compatible analog cameras that combines a moving part compatible coaxial cable and an electric wire according to the mechanical device to be used. Please refer to the Robot Cable Design Communication Sheet and contact the Junkosha Customer Service Center or sales representative.
Cable for Lan for Moving Parts
- CAT5e compliant LAN cable for moving (sliding) parts. Even when used in harsh environments, these cables maintain high signal transmission characteristics and are expected to reduce the frequency of maintenance.
| Catalog Number | JLAN-CAT5-27 | |
| Structure | 4 Pair | |
| Conductor | Size | AWG 27 |
| Material | Silver-Plated High Tensile Strength Copper Alloy | |
| Insulator | FEP | |
| Bulk Shield | Braided Shield | |
| Sheath | PVC | |
| Outer Diameter | Standard 7.6mm （Max 8.3 mm） | |
| Approximate Mass | 74g | |
| Characteristic Impedance （Ω） | Characteristic Impedance （Ω） | Standard 100 |
| Conductor Resistance（Ω/km） @20℃ | <150 | |
| Insulation Resistance（MΩ・km） | >1500 | |
Cable for Device Net for Moving Parts
- DeviceNet compliant cable for moving (sliding) parts. It maintains high signal transmission characteristics even when used in harsh environments, and can be expected to require less maintenance.
| Catalog Number | JDVAN-THIN-02 | JDVAN-THIN-01 | |||
| Structure | Power Line Shielded Twisted Pair | Signal Line Twinax Cable | Twisted Pair with Power Cable Shield | Structure | |
| Conductor | Size | AWG24 | AWG22 | AWG18 | AWG15 |
| Material | Tin-Plated Annealed Copper Wire | Tin-Plated Annealed Copper Wire | Tin-Plated Annealed Copper Wire | Tin-Plated Annealed Copper Wire | |
| Flexible Stranded Wire | Flexible Stranded Wire | Flexible Stranded Wire | Flexible Stranded Wire | ||
| Insulator | Material | FEP | ETFE | FEP | ETFE |
| Drain Wire | AWG22 Tinned Annealed Copper Wire, Flexible Stranded Wire | AWG18 Tin-Plated Annealed Copper Wire, Flexible Stranded Wire | |||
| Bulk Shield | Copper Alloy Wire, Special Horizontal Shield | Copper Alloy Wire, Special Horizontal Shield | |||
| Sheath | PVC | PVC | |||
| Outer Diameter | Standard 8.7mm (Maximum 9.5mm) | Standard 15.7mm (Maximum 17.9mm) | |||
| Approximate Mass | 85ｇ | 250ｇ | |||
| Characteristic | Characteristic Impedance （Ω） | 120 ±12 | ー | 120 ±12 | ー |
| Conductor Resistance（Ω/km） @20℃ | <100 | <50.8 | <22.6 | <10.3 | |
| Insulation Resistance（MΩ・km） | >1500 | >1500 | >1500 | >1500 | |
Robot Cables for Servo Motor Peripherals
- Dedicated cable for moving parts of servo motors and peripheral equipment, with excellent long life, bending resistance, and space saving. Low-friction PVC is used for the sheath.
