Coaxial cable for movable parts with controlled electrical properties, including characteristic impedance.
Suitable for new requirements, such as acceleration of propagation velocity, smaller diameter for high-density wiring, and expansion of frequency properties.
Suitable for new requirements, such as acceleration of propagation velocity, smaller diameter for high-density wiring, and expansion of frequency properties.
Features
- High-frequency coaxial cable usable in parts where light bending load is applied repeatedly.
Use
- High-frequency transmission lines for movable parts.
- Lead wires of sensors for movable parts.
- Lead wires of sensors for movable parts.
| High Frequency Coaxial Cable for FEP Movable Parts | |
| Type | DFS |
| Inner Conductor | SL |
| Dielectric Material | FEP |
| Shield Structure | Braided or Served Wire Shield |
SL: Silver plated high tensile strength copper alloy wire

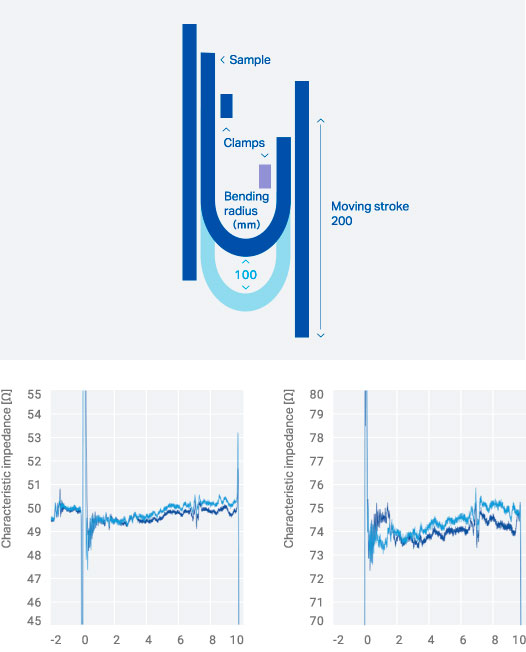

Coaxial Cable Sliding Test for Moving Parts
-
Left: DFS410 (50Ω coaxial)
Characteristic impedance change after 10 million sliding tests
Right: DFS455 (75Ω coaxial)
Characteristic impedance change after 10 million sliding tests
| Catalog No. | DFS400 | DFS405 | DFS410 | DFS415 | DFS430 | DFS450 | DFS455 | DFS440 |
| Minimum Bend Radius［mm］ | 40 | 40 | 40 | 40 | 50 | 50 | 50 | 50 |
* Recommended minimum bending radius after confirming characteristic changes by 10 million sliding tests.
