Junkosha Flat and High-Flex Cable

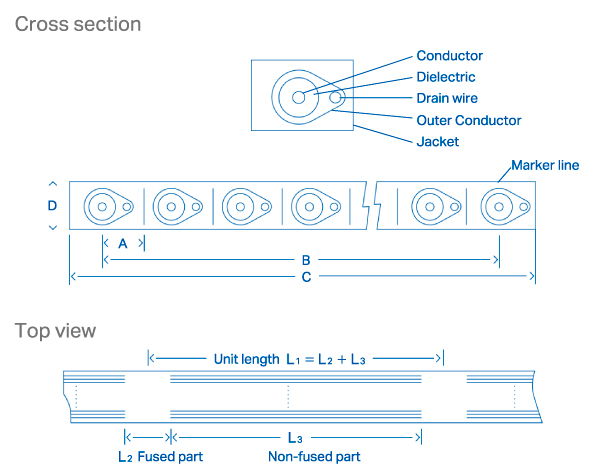

Coaxial Multi-Flat Cable contributes towards miniaturizing and high-densifying electronic devices. Multiple coaxial cables are aligned in parallel at a certain pitch then fused at every specified length.
Features
- Dedicated connectors are available, allowing high density mounting without incorrect wiring
Use
- High-speed digital signal processing systems requiring higher density
| FEP Coaxial Multi Flat Cable | EPTFE Coaxial Multi Flat Cable | EPTFE Coaxial Multi Flat Cable | |
| Type | MCF05Axxx | MCG05Axxx | MCG07Axxx |
| Characteristic Impedance (Ω) | 50 | 50 | 75 |
| Inner Conductor Material | SA | SA | SA |
| Inner Conductor Configuration (Core/mm) | 1/0.203 | 1/0.254 | 1/0.180 |
| Dielectric Material | FEP | ePTFE | ePTFE |
| Identification Line | Yellow | Orange | Green |
SA：Siver plated annealed copper wire
